ABOUT US

The foundation stone of ASHAPOWER® has been set since the 1990s in Malappuram district of Kerala when two of the brothers from Asha family developed the idea of a remote controlled dish antennas at home. The reason behind this revolutionary step for Veerankutty and Mammedkutty was their passion for football and to make it possible to watch the game from home, when the only channel available on TV was Doordarshan during the old times. Since then, their journey towards success kick started in the name ASHA ELECTRONICS. Decades later, ASHA ELECTRONICS is now taken over by the second generation of the family, Dilshan and Abhinash, continuing their legacy in electronics.


ASHAPOWER® is the new face of ASHA ELECTRONICS, moving forward with the development of a wide range of power electronic devices essential to the modern society. ASHAPOWER® has worked for the creation of products like Solar MPPT, Home UPS, Solar UPS, Inverters etc with the use of modern technology components. They are the leading producers of these innovative products, aiming towards creating a power revolution phase in the future of the nation. Presently, ASHAPOWER® has finished a number of successful solar power plant installations and is still continuing the journey with sophisticated and state of the art technology.

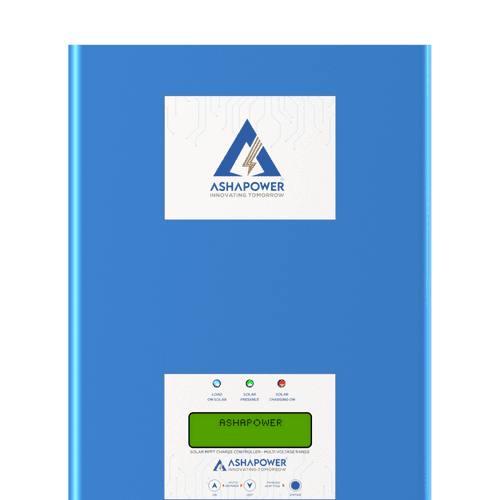

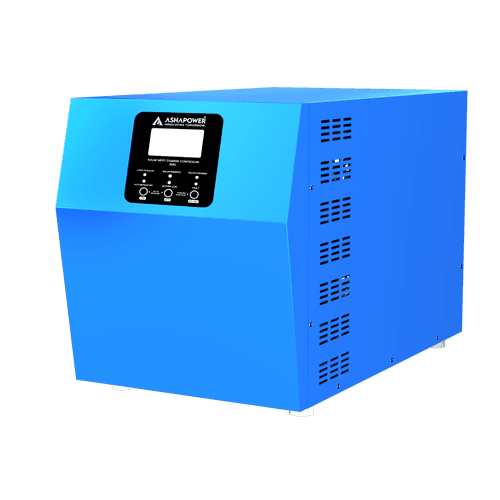

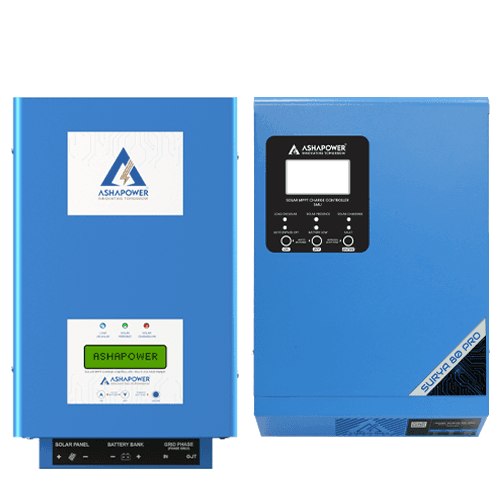

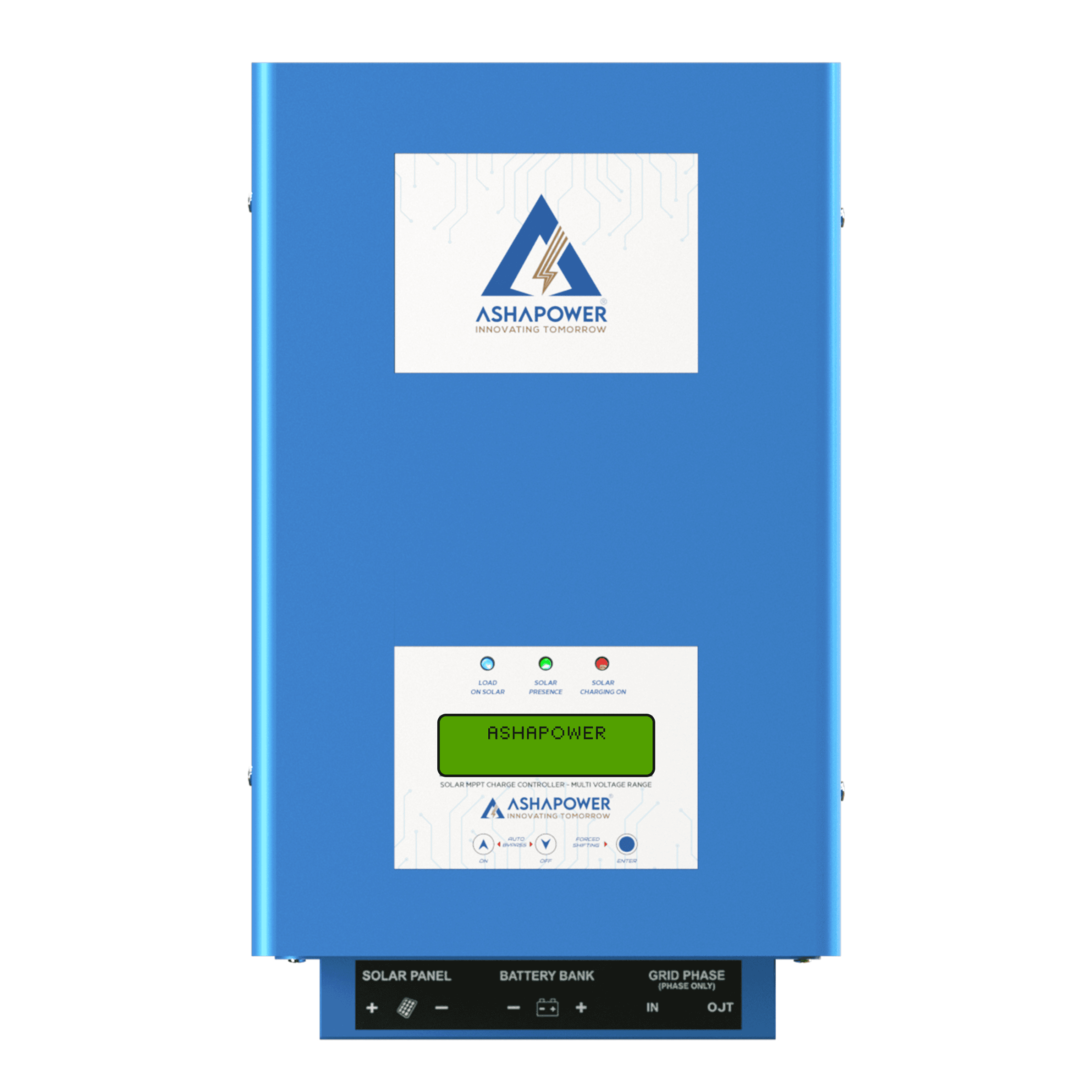

MULTI VOLTAGE RANGE SOLAR MPPT CHARGE CONTROLLER

ASHAPOWER® MPPTs are the most moving revolutionary product in Indian Solar Industry and received appreciations from many reputed solar installers in the market. Its Multi Voltage Range Technology helps the installer to make the solar installations easy and flexible as it can be used to charge battery banks ranging from 1 battery (12V) to 8 batteries (96V) [Auto selection]. Also ASHAPOWER® MPPTs can covert your existing Inverter to a Solar Inverter with the best performance in its class.

SALIENT FEATURES

BATTERY

Smart Protection for Battery.
Intelligent Multi Step Charging.
User Configurable Charging Current.
Compatible for 12/24/36/48/60/72/96V Battery Banks (Auto Setting).

SOLAR PANEL

PV panel input voltage up to 230V.
PV panel reverse polarity protection.
Disconnects PV panels at night.
Over voltage protection from PV panel.


SMART

Ultra-fast & Efficient Power Point Tracking Algorithm.
Displays everyday energy harvest.
Solar Status Monitoring LEDs.
Stylish and Durable Casing.

VARIANTS

×

Solar MPPT Charge Controller (SURYA 40)



ASHAPOWER® solar MPPT charge controllers (Surya 40) are multi voltage range devices that are unique in its kind in the market. The same device can be used for battery banks ranging from 1 battery (12V) up to a battery bank of 2 batteries (24V) in series. The battery voltage is selected by the device itself when we connect the battery bank across its terminal. The device gives a configurable charging current up to 40A. The PV panel input open circuit voltage up to 100V makes it easier to group the panels conveniently. Also sleek & stylish design of the product gives a better aesthetic view so that you can wall mount the product in a visible place inside your home/office.



NEON SURYA 40 APOLLO HELIOS NEON 60 APOLLO 60
Pricing
9,600.00
9,800.00
11,490.00
14,990.00
13,999.00
15,990.00
PV Input
Max PV Array Open Circuit Voltage 140V 100V 185V 230V 180V 220V
Max PV Array Power 1600W 1000W 3000W 4000W 3200W 4500W
OUTPUT
Nominal Battery Voltage 12/24/36/48 V
(Auto Setting)
12/24 V
(Auto Setting)
12/24/36/ 48/ 60/ 72 V
(Auto Setting)
48/60/72/ 96 V
(Auto Setting)
12/24/36/48 V
(Auto Setting)
24/36/48/ 60/ 72 V
(Auto Setting)
Maximum Charging Current 30A (Configurable) 40A (Configurable) 40A (Configurable) 40A (Configurable) 60A (Configurable) 60A (Configurable)
Maximum Tracking Efficiency 98.9% 98.9% 98.9% 98.9% 98.9% 98.9%
Standby Power Consumption 2W 2W 2W 3W 2W 2W
PROTECTION
Overload Protection
Over Charge Protection
Panel Reverse Polarity Protection
Battery Reverse Polarity Protection Optional Optional Optional Optional Optional Optional
PHYSICAL
Dimensions - LxWxH (mm) 318x215x112 318x215x112 318x215x112 350x215x130 350x215x130 350x215x130
Net Weight (Kgs) 3.4Kgs 3.6Kgs 3.9Kgs 4.5Kgs 4.8Kgs 5Kgs
Connector Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block
COMMUNICATION
Standard Display/UART Display/UART Display/UART Display/UART Display/UART Display/UART


SURYA 40 USER MANUAL.pdf
1.75 MB
×

Solar MPPT Charge Controller (NEON)



ASHAPOWER® solar MPPT charge controllers (Neon) are multi voltage range devices that are unique in its kind in the market. The same device can be used for battery banks ranging from 1 battery (12V) up to a battery bank of 4 batteries (48V) in series. The battery voltage is selected by the device itself when we connect the battery bank across its terminal. The device gives a configurable charging current up to 30A. The PV panel input open circuit voltage up to 140V makes it easier to group the panels conveniently. Also sleek & stylish design of the product gives a better aesthetic view so that you can wall mount the product in a visible place inside your home/office.



NEON SURYA 40 APOLLO HELIOS NEON 60 APOLLO 60
Pricing
9,600.00
9,800.00
11,490.00
14,990.00
13,999.00
15,990.00
PV Input
Max PV Array Open Circuit Voltage 140V 100V 185V 230V 180V 220V
Max PV Array Power 1600W 1000W 3000W 4000W 3200W 4500W
OUTPUT
Nominal Battery Voltage 12/24/36/48 V
(Auto Setting)
12/24 V
(Auto Setting)
12/24/36/ 48/ 60/ 72 V
(Auto Setting)
48/60/72/ 96 V
(Auto Setting)
12/24/36/48 V
(Auto Setting)
24/36/48/ 60/ 72 V
(Auto Setting)
Maximum Charging Current 30A (Configurable) 40A (Configurable) 40A (Configurable) 40A (Configurable) 60A (Configurable) 60A (Configurable)
Maximum Tracking Efficiency 98.9% 98.9% 98.9% 98.9% 98.9% 98.9%
Standby Power Consumption 2W 2W 2W 3W 2W 2W
PROTECTION
Overload Protection
Over Charge Protection
Panel Reverse Polarity Protection
Battery Reverse Polarity Protection Optional Optional Optional Optional Optional Optional
PHYSICAL
Dimensions - LxWxH (mm) 318x215x112 318x215x112 318x215x112 350x215x130 350x215x130 350x215x130
Net Weight (Kgs) 3.4Kgs 3.6Kgs 3.9Kgs 4.5Kgs 4.8Kgs 5Kgs
Connector Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block
COMMUNICATION
Standard Display/UART Display/UART Display/UART Display/UART Display/UART Display/UART


NEON USER MANUAL.pdf
1.76MB
×

Solar MPPT Charge Controller (NEON 60)



ASHAPOWER® solar MPPT charge controllers (Neon 60) are multi voltage range devices that are unique in its kind in the market. The same device can be used for battery banks ranging from 1 battery (12V) up to a battery bank of 4 batteries (48V) in series. The battery voltage is selected by the device itself when we connect the battery bank across its terminal. The device gives a configurable charging current up to 60A. The PV panel input open circuit voltage up to 180V makes it easier to group the panels conveniently. Also sleek & stylish design of the product gives a better aesthetic view so that you can wall mount the product in a visible place inside your home/office.



NEON SURYA 40 APOLLO HELIOS NEON 60 APOLLO 60
Pricing
9,600.00
9,800.00
11,490.00
14,990.00
13,999.00
15,990.00
PV Input
Max PV Array Open Circuit Voltage 140V 100V 185V 230V 180V 220V
Max PV Array Power 1600W 1000W 3000W 4000W 3200W 4500W
OUTPUT
Nominal Battery Voltage 12/24/36/48 V
(Auto Setting)
12/24 V
(Auto Setting)
12/24/36/ 48/ 60/ 72 V
(Auto Setting)
48/60/72/ 96 V
(Auto Setting)
12/24/36/48 V
(Auto Setting)
24/36/48/ 60/ 72 V
(Auto Setting)
Maximum Charging Current 30A (Configurable) 40A (Configurable) 40A (Configurable) 40A (Configurable) 60A (Configurable) 60A (Configurable)
Maximum Tracking Efficiency 98.9% 98.9% 98.9% 98.9% 98.9% 98.9%
Standby Power Consumption 2W 2W 2W 3W 2W 2W
PROTECTION
Overload Protection
Over Charge Protection
Panel Reverse Polarity Protection
Battery Reverse Polarity Protection Optional Optional Optional Optional Optional Optional
PHYSICAL
Dimensions - LxWxH (mm) 318x215x112 318x215x112 318x215x112 350x215x130 350x215x130 350x215x130
Net Weight (Kgs) 3.4Kgs 3.6Kgs 3.9Kgs 4.5Kgs 4.8Kgs 5Kgs
Connector Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block
COMMUNICATION
Standard Display/UART Display/UART Display/UART Display/UART Display/UART Display/UART


NEON 60 USER MANUAL.pdf
1.77MB
×

Solar MPPT Charge Controller (APOLLO)



ASHAPOWER® solar MPPT charge controllers (Apollo) are multi voltage range devices that are unique in its kind in the market. The same device can be used for battery banks ranging from 1 battery (12V) up to a battery bank of 6 batteries (72V) in series. The battery voltage is selected by the device itself when we connect the battery bank across its terminal. The device gives a configurable charging current up to 40A. The PV panel input open circuit voltage up to 185V makes it easier to group the panels conveniently. Also sleek & stylish design of the product gives a better aesthetic view so that you can wall mount the product in a visible place inside your home/office.



NEON SURYA 40 APOLLO HELIOS NEON 60 APOLLO 60
Pricing
9,600.00
9,800.00
11,490.00
14,990.00
13,999.00
15,990.00
PV Input
Max PV Array Open Circuit Voltage 140V 100V 185V 230V 180V 220V
Max PV Array Power 1600W 1000W 3000W 4000W 3200W 4500W
OUTPUT
Nominal Battery Voltage 12/24/36/48 V
(Auto Setting)
12/24 V
(Auto Setting)
12/24/36/ 48/ 60/ 72 V
(Auto Setting)
48/60/72/ 96 V
(Auto Setting)
12/24/36/48 V
(Auto Setting)
24/36/48/ 60/ 72 V
(Auto Setting)
Maximum Charging Current 30A (Configurable) 40A (Configurable) 40A (Configurable) 40A (Configurable) 60A (Configurable) 60A (Configurable)
Maximum Tracking Efficiency 98.9% 98.9% 98.9% 98.9% 98.9% 98.9%
Standby Power Consumption 2W 2W 2W 3W 2W 2W
PROTECTION
Overload Protection
Over Charge Protection
Panel Reverse Polarity Protection
Battery Reverse Polarity Protection Optional Optional Optional Optional Optional Optional
PHYSICAL
Dimensions - LxWxH (mm) 318x215x112 318x215x112 318x215x112 350x215x130 350x215x130 350x215x130
Net Weight (Kgs) 3.4Kgs 3.6Kgs 3.9Kgs 4.5Kgs 4.8Kgs 5Kgs
Connector Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block
COMMUNICATION
Standard Display/UART Display/UART Display/UART Display/UART Display/UART Display/UART


APOLLO USER MANUAL.pdf
1.80MB
×

Solar MPPT Charge Controller (APOLLO 60)



ASHAPOWER® solar MPPT charge controllers (Apollo 60) are multi voltage range devices that are unique in its kind in the market. The same device can be used for battery banks ranging from 2 battery (24V) up to a battery bank of 6 batteries (72V) in series. The battery voltage is selected by the device itself when we connect the battery bank across its terminal. The device gives a configurable charging current up to 60A. The PV panel input open circuit voltage up to 220V makes it easier to group the panels conveniently. Also sleek & stylish design of the product gives a better aesthetic view so that you can wall mount the product in a visible place inside your home/office.



NEON SURYA 40 APOLLO HELIOS NEON 60 APOLLO 60
Pricing
9,600.00
9,800.00
11,490.00
14,990.00
13,999.00
15,990.00
PV Input
Max PV Array Open Circuit Voltage 140V 100V 185V 230V 180V 220V
Max PV Array Power 1600W 1000W 3000W 4000W 3200W 4500W
OUTPUT
Nominal Battery Voltage 12/24/36/48 V
(Auto Setting)
12/24 V
(Auto Setting)
12/24/36/ 48/ 60/ 72 V
(Auto Setting)
48/60/72/ 96 V
(Auto Setting)
12/24/36/48 V
(Auto Setting)
24/36/48/ 60/ 72 V
(Auto Setting)
Maximum Charging Current 30A (Configurable) 40A (Configurable) 40A (Configurable) 40A (Configurable) 60A (Configurable) 60A (Configurable)
Maximum Tracking Efficiency 98.9% 98.9% 98.9% 98.9% 98.9% 98.9%
Standby Power Consumption 2W 2W 2W 3W 2W 2W
PROTECTION
Overload Protection
Over Charge Protection
Panel Reverse Polarity Protection
Battery Reverse Polarity Protection Optional Optional Optional Optional Optional Optional
PHYSICAL
Dimensions - LxWxH (mm) 318x215x112 318x215x112 318x215x112 350x215x130 350x215x130 350x215x130
Net Weight (Kgs) 3.4Kgs 3.6Kgs 3.9Kgs 4.5Kgs 4.8Kgs 5Kgs
Connector Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block
COMMUNICATION
Standard Display/UART Display/UART Display/UART Display/UART Display/UART Display/UART


APOLLO 60 USER MANUAL.pdf
1.87MB
×

Solar MPPT Charge Controller (HELIOS)



ASHAPOWER® solar MPPT charge controllers (Helios) are multi voltage range devices that are unique in its kind in the market. The same device can be used for battery banks ranging from 4 battery (48V) up to a battery bank of 8 batteries (96V) in series. The battery voltage is selected by the device itself when we connect the battery bank across its terminal. The device gives a configurable charging current up to 40A. The PV panel input open circuit voltage up to 230V makes it easier to group the panels conveniently. Also sleek & stylish design of the product gives a better aesthetic view so that you can wall mount the product in a visible place inside your home/office.



NEON SURYA 40 APOLLO HELIOS NEON 60 APOLLO 60
Pricing
9,600.00
9,800.00
11,490.00
14,990.00
13,999.00
15,990.00
PV Input
Max PV Array Open Circuit Voltage 140V 100V 185V 230V 180V 220V
Max PV Array Power 1600W 1000W 3000W 4000W 3200W 4500W
OUTPUT
Nominal Battery Voltage 12/24/36/48 V
(Auto Setting)
12/24 V
(Auto Setting)
12/24/36/ 48/ 60/ 72 V
(Auto Setting)
48/60/72/ 96 V
(Auto Setting)
12/24/36/48 V
(Auto Setting)
24/36/48/ 60/ 72 V
(Auto Setting)
Maximum Charging Current 30A (Configurable) 40A (Configurable) 40A (Configurable) 40A (Configurable) 60A (Configurable) 60A (Configurable)
Maximum Tracking Efficiency 98.9% 98.9% 98.9% 98.9% 98.9% 98.9%
Standby Power Consumption 2W 2W 2W 3W 2W 2W
PROTECTION
Overload Protection
Over Charge Protection
Panel Reverse Polarity Protection
Battery Reverse Polarity Protection Optional Optional Optional Optional Optional Optional
PHYSICAL
Dimensions - LxWxH (mm) 318x215x112 318x215x112 318x215x112 350x215x130 350x215x130 350x215x130
Net Weight (Kgs) 3.4Kgs 3.6Kgs 3.9Kgs 4.5Kgs 4.8Kgs 5Kgs
Connector Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block Input/Output Terminal Block
COMMUNICATION
Standard Display/UART Display/UART Display/UART Display/UART Display/UART Display/UART


HELIOS USER MANUAL.pdf
1.88MB
