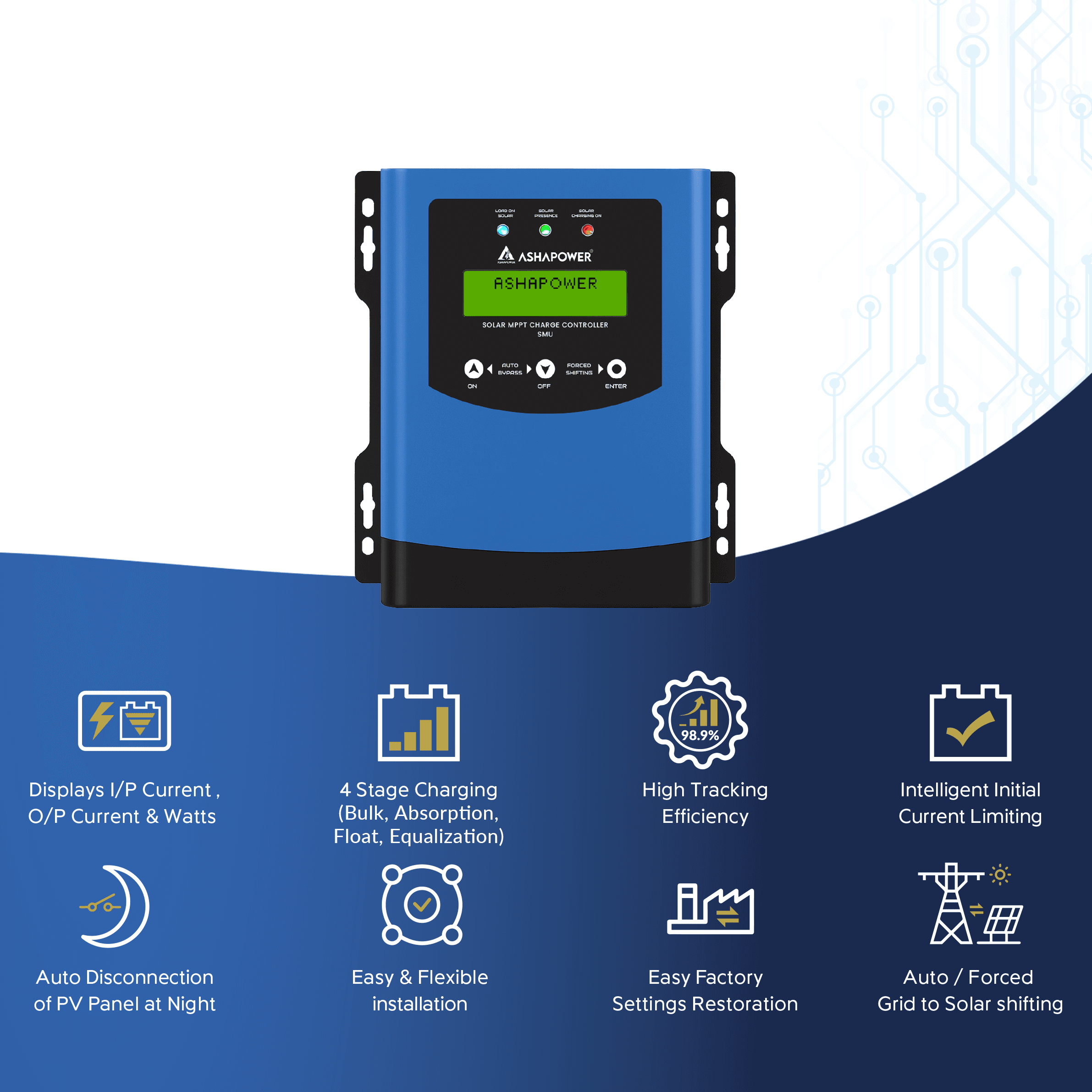

NOVA-30

NOVA-30 is a mini yet powerful solar MPPT charge controller, offering high performance at an affordable price—combining the benefits of MPPT efficiency with cost-effective accessibility. It is designed for charging 12V and 24V battery systems with automatic battery detection and configuration. The controller supports all types of solar panels available in the market. It is compatible with a wide range of batteries, including Lead-acid, VRLA, Gel, and Lithium batteries (with a good BMS and active balancer).

Key Features

• Compatible for 12V/24V battery bank
• Auto-detection and self setting of battery bank
• True 4 stage smart charging for prolonged battery life (Bulk - Absorption - Float - Equalisation)
• Programmable Initial limited ampere battery charging facility
• Ultra-fast & efficient Power Point Tracking (98.9%)
• dsPIC33EP family micro controller based device
• PV panel reverse polarity protection
• Automatic disconnection of PV panels at night
• Over voltage and overload protection from PV panels
• Protection for battery against hardware failures
• 25 menu user programmable function settings and in built settings keys
• Grid power control to the connected inverter (SMU-Solar Management Unit)
• Forced grid to solar shifting facility
• Multifunction status display
